Revolve Press Release

Here is the video of Revolve in action.

PRESS RELEASE

Revolve takes sound interaction and musical creativity to a new level of simplicity, you simply punch holes into a sheet of paper to create your own personally made 8 bit tunes. The idea is simple, you have a wind up motor which spins a central point on a turntable. Along this turntable you have multiple LDR’s all programmed to produce different pitches of sound depending on which LDR’s are visible and which are covered. You take your piece of paper and punch holes according to which pitch of note you would like to play then attach it to the turntable simply by putting a magnet in the centre of the paper, which attaches to the central point which is spinning.
The idea for Revolve started by having lots of LDR’s which would all have an individual pitch of note. We then looked into record players and gramophones and thought it would be good if we could somehow incorporate the two ideas into one. Rather than covering the LDR’s with your finger to make them play we used disk’s of paper (which came from the idea of vinyl’s spinning) then by punching holes in the paper, when these holes are over the LDR the resistance changes which we used to trigger a beat.

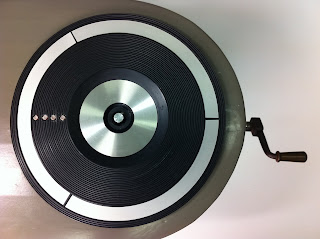

Final Finished Product Images




Final working product images.  Fairly happy with it.  Looking pretty good.  It's been a long hard slog.

Revolve in action


1ST Test.  Working!!!!  YAAAAASSSSS!!!

AMAZING 8-BIT MUSIC AND VIDEO

http://www.youtube.com/watch?v=GbfCZx1tRUs

Getting the electronics inside

Struggling to get all the electronics inside.  ARRRRRRGGGGGHHHHH!!!!
